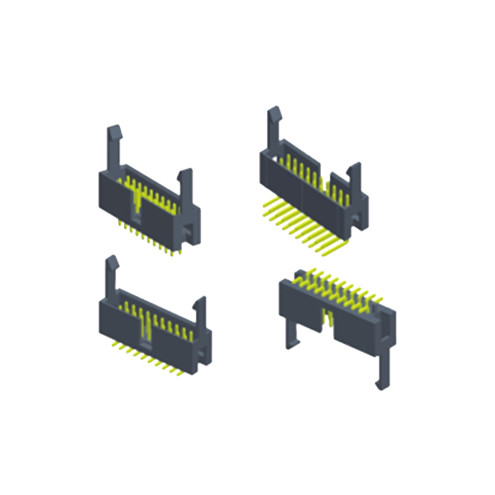

Straight Dip Dual Row 2.0mm Ejector Header Connector For PCB Board

2.0mm ejector header connector straight dip dual row for pcb board ejector header


Product introduction

ejector header is a kind of connector, the two ends of the body plastic with two ear buckle, similar to the two horns of the cow and named, English name: Horn connector.
This connector is widely used in electronics, electrical appliances, instrumentation in the PCB circuit board, its role is to be blocked in the circuit or isolated between the circuit, to play the function of a bridge, to take up the task of current or signal transmission.
Usually used in conjunction with the motherboard to form a board-to-board connection; or with the electronic harness terminal to form a board-to-wire connection.
As the specifications required for different products are not the same, there are various types and sizes of bullhorn.
ejector header connectors are widely used in vehicle monitoring, instrumentation, Internet of Things, new energy vehicles, LED display field, POS and scanners, lighting industry, security industry, electronic toys, household appliances, etc. to provide the most reliable connection board-to-board and wire-to-board.

Product specifications

Spacing can be roughly divided into: 1.27mm, 2.00mm, 2.54mm
Rows can be broadly divided into: double rows
The ear clasps can be broadly divided into: long ear clasps, short ear clasps.
High temperature insulating plastic (UL94V-0) material: PBT (only for wave soldering process).
High temperature insulating plastic (UL94V-0) materials: PA6T, PA9T, LCP (can meet the wave soldering, reflow soldering two processes).
Insulation plastic colour can be divided into: black, white, blue, this colour, etc.
Square pin material: brass (H65)
(Hardware contact terminal surface treatment: nickel plated before gold or silver plating, bright tin plating, tin-free plating, semi-gold tin plating, etc.).

Product properties

Product Drawings


Company information

Shenzhen soulin Electronic Technology Co., Ltd., founded in September 2009, is
located in Guangming District, Shenzhen. It specializes in the R & D and
manufacturing of connectors. It has more than 300 employees and a plant area of
more than 14000 square meters. It is divided into hardware department, injection
molding department, assembly department and electroplating Department. It has 36
precision high-speed punches, 32 precision injection molding machines, and more than
180 automatic product assembly machines.







FAQ

1) Your enquiry will be answered within 24 hours.

2)We provide OEM, ODM service, product details can be made according to your requirements.

3)Excellent pre-sales and after-sales service.

4)Factory and trade integration, 13 years export experience

5)Competitive price

6)Prompt delivery
